Small Drums (below 70 litres) Kegs

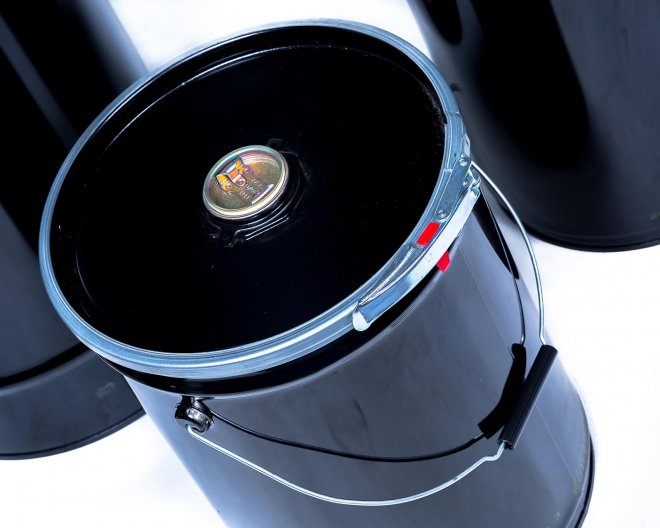

A keg is a small open top drum that is a suitable container for transporting powders, pastes and semi-solids such as dye stuffs.
We manufacture kegs with eight different diameters and a wide range of heights. These are all made to British Standards with most meeting the requirements for UN Group I or II for solids, whilst some of our kegs are certified for the packaging of UN Group II liquids.
The lids are completely removable and can be supplied with or without a sealing gasket. A variety of different closing rings can be used to secure the lids in place depending on which is the best fit for the customer and their processes.
Specification
Size (in metric)
| Diameter | Height Range | Capacity Range |
|---|---|---|
| 203mm | 140mm - 432mm | 3 - 11 litres |
| 229mm | 152mm - 508mm | 5 - 16 litres |
| 254mm | 178mm - 559mm | 7 - 27 litres |
| 280mm | 178mm - 610mm | 10 - 30 litres |
| 286mm | 178mm - 610mm | 12 - 32 litres |
| 305mm | 229mm - 610mm | 15 - 38 litres |
| 356mm | 254mm - 711mm | 20 - 63 litres |
Material
CR4 grade cold reduced mild steel in various thicknesses.
Construction
Electrically welded side seam, with ends double seamed and solutioned.
Head Fittings / Appertures
Galvanised ring with either internal or external quick release lever, two prong latch fastener or screw closure with nut and bolt.
Handle
Wire drop or bale handle with grip.
Finish
| Interior | Plain, varnished or lacquered |
|---|---|
| Exterior | Painted and oven cured | Screen printed or lithographed |
Resources
Quality Assurance - Made in the UK
We operate exacting and thorough quality systems at both our sites and these are approved in accordance with standard BS EN ISO 9001.
